Moog Minifooger MF Analog Flange to replace your Martin d45 Classic Rickenbacker bass Model 4003 sunburst Fender Gretsch  white falcon PRS Cibson C-Les-paul Standard Pro  Fender japan PB70 bass P BASS Ibanez PGM3 PAUL GILBERT Jackson Cibson Martin D41 ES335 Ernie Ball Music Man ESP Schecter Cibson Custom Shop Historic 1959 C-Les-paul 1957 junior single cutaway  Reissue Aged 13 Guitar Gretsch style Electronic Hollowbody Electric . we make a drop-in replacement for Moog Minifooger MF Analog Flange. If you’re not sure   Moog Minifooger MF Analog Flange just contact with us .Guitars China competes with the biggest names in the Moog Minifooger MF Analog Flange guitar Market.

Moog Minifooger MF Analog Flange  gives you big acoustic-electric sound at a budget price!

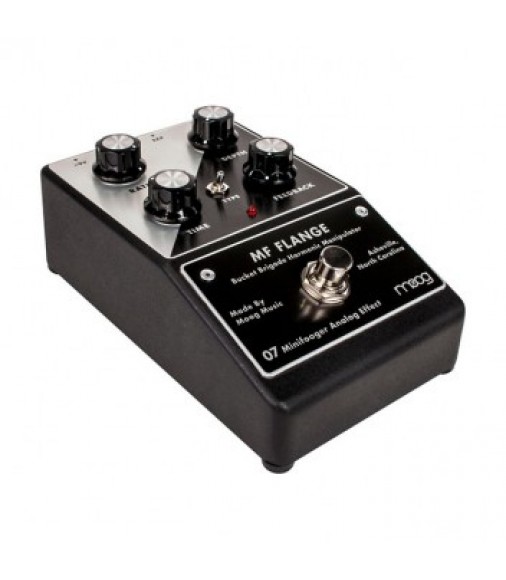

The flanging effect has been popular in rock & pop since the sixties, and still remains a favourite. The new Moog MF Flange is a versatile, 100% analog pedal that sounds warm and delivers a rich variety of different sounds, from lush chorus to Hendrix-style Uni-Vibe vibes, to that classic "jet engine" wide flange.

There is also a fully sweep-able feedback knob, which determines the resonant peak of a sweep, as well as a wide-range Time control that pushes the creation of sound capabilities of this analog effect far beyond the limitations of  a traditional flanger.

Features:

• Rate: At Minimum position sweeps are gradual and fluid. As rate is increased, the movement becomes tighter and more focused. At maximum position, the modulation sound becomes is rapid and transitions to hard, percussive pulsing.
• Depth: Determines the amount of modulation applied to the delay time. As depth is increased, the sound transitions from light motion and phasing all the way into massive multi-octave sweeps.
• Time: At maximum position you can easily craft traditional or vocal, metallic flange sounds. As the Time control position is reduced, delay time is increased and sounds become thicker and warmer. At Minimum position, the MF Flange is capable of approaching analog chorus.
• Feedback:This control brings focus and resonance to the sweep of a sound. At minimum position, sweeps are smooth and neutral. At medium position, sweeps begin to peak musically. At maximum position, the sound of a sweep becomes rigid and metallic.
• TYPE:  The lower position subtracts feedback from the input signal mixer and output dry signal creating a more vocal sound. In the Upper position, feedback is positively summed with the input signal and dry signal, producing a more traditional flanger sound.
• EXPRESSION PEDAL INPUT: This input is assigned to the Time control. Use an expression pedal to manually sweep through the delay frequency range of the MF Flange.
• MONO/STEREO SWITCH: To access both outputs (in bypass), you will need to remove the bottom of the MF Chorus and set this switch to Stereo. Then use a ¼” TRS to TS insert cable or TRS to TS splitter.
• WARNING: When set to Stereo and in bypass, excessive loading may occur. To avoid this, set this switch to Mono. A stereo output will still be present.
• True Bypass
• 100% analog wide-range Flange
• Extreme time and phase manipulation possibilities
• Mono or Stereo out
• Designed to perform with any Guitar, Amp, or Bass guitar configuration

SPECS

• PRELIMINARY SPECIFICATIONS (Specifications subject to change)
• SIGNAL PATH: 100% Analog
• BYPASS TYPE: True bypass
• POWER: +9VDC
• WEIGHT: 18oz (0.5kg)
• ENCLOSURE: Cast aluminum
• DIMENSIONS: D=5.75” (14.4 cm) W=3.25” (8.3 cm) H=2.25” (5.8 cm)
• DELAY TIME: <0.540mS – 16mS (0.340-20mS with modulation)
• LFO RATE : <.025Hz - >11Hz
• LFO SHAPE: Exponentiated Triangle
• EXPRESSION: Controls Time (Max Input level +5VDC)
• INPUT IMPEDANCE: >1 MegaOhm
• OUTPUT IMPEDANCE: 1000 Ohm Max
• MAX INPUT LEVEL: +7.5dBμ
• MAX OUTPUT LEVEL: +10dBμ
• CURRENT: 18mA Nominal / 22mA Max
• STEREO OUTPUT MODES:
• TYPE SWITCH UP - Left (Mono) Output = Dry + Wet / Right Output  = Dry - Wet
• TYPE SWITCH DOWN - Left (Mono) Output = Dry - Wet / Right Output = Dry + Wet

Moog Minifooger MF Analog Flange Specification

Best guitar brands stay on top for good reason so if you’re looking for a Moog Minifooger MF Analog Flange
 it’s smart to start with the big names. These companies have built up their reputations over the years by producing high-quality instruments used by some of the best guitar players in the world.Moog Minifooger MF Analog Flange guitar manufacturers have even been around over a hundred years! You’ve probably heard of most of them, but there are also some less-famous names out there making amazing instruments.
If you’re new to Moog Minifooger MF Analog Flange, or if you’re just now taking an interest in the different instrument makers for the first time, this guide is intended to help you sort out what makes each manufacturer unique and decide whether or not their products are a good match for your needs.

There’s a lot of information about Moog Minifooger MF Analog Flange, but there are a lot of guitars out here in the world!

Hot Guitar as bellow:
Cibson es335  SG Gretsch G5420T Gretsch white falcon Squier Deluxe Strat fender stratocaster Fender Telecaster Cibson lp custom Cibson lp standard  Gretsch G5420T, Gretsch white falcon, PRS SE Custom 24, PRS SE Custom 22 Squier Deluxe ,fender stratocaster fender  custom shop custom  lp standard Cibson SG Gretsch G5420T Gretsch white falcon PRS SE Custom guitar 24 PRS SE Custom 22 Squier Deluxe fender stratocaster  Fender Telecaster  custom shop rickenbacker 4003 rickenbacker 330 rickenbacker 360 ibanez rg350 ibanez rg550 ibanez 7v SUHR custom Music Man 5 string bass

Can We Help?
At Guitar China, we have one single goal in mind: to make you a satisfied customer.
Guitar China's friendly Sales Engineers are regarded as the most experienced and knowledgeable professionals in the music industry,  They are available to offer you personalized product advice any time you need  Moog Minifooger MF Analog Flange.
